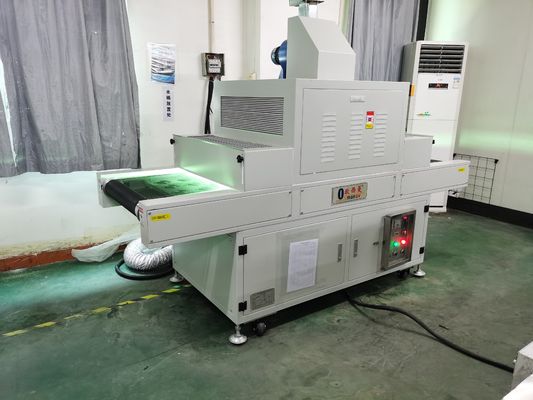

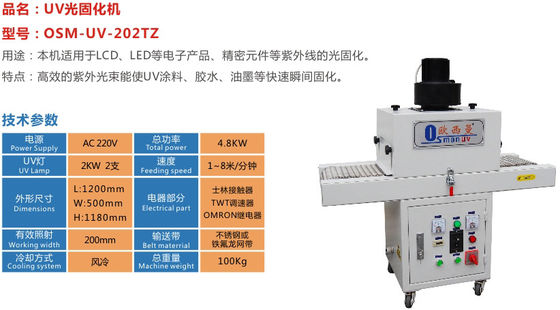

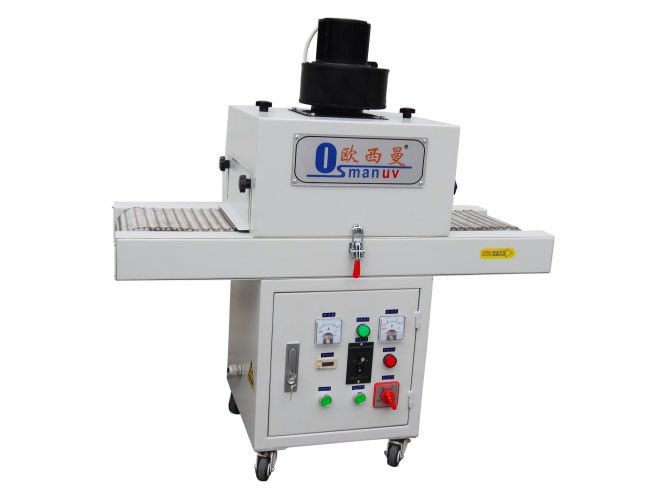

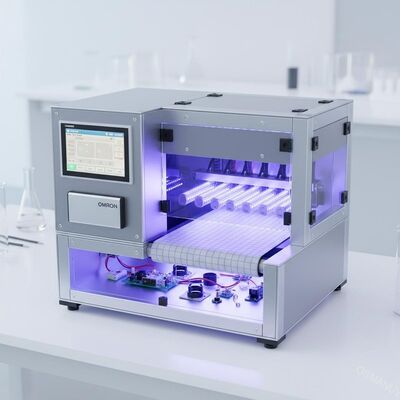

omron relay Uv Curing Machinete flon conveyor belt LCD LED Glue Quickiy UV Curing Machine
Mesin pengerasan UV untuk LCD LED
,Mesin pengerasan relay UV Omron
,mesin teflon conveyor belt UV
Mesin pengerasan UV desktop yang dirancang untuk pengerasan cepat lem LCD dan LED, dengan relay Omron dan pita pengangkut Teflon untuk kinerja industri yang andal.
| 1 | Nama produk | Mesin Pengeringan Cahaya UV |
| 2 | Model | GX-UV-202A Desktop Light Curing Machine |
| 3 | Sumber Daya | 220V/50HZ |
| 4 | Spesifikasi | Panjang 1250 mm × lebar 550 mm × tinggi 490 mm |
| 5 | Bahan | Kerang yang terbuat dari lempeng bergelombang dingin 1,5 mm, ditekuk dan dilas, dicat komputer putih, tahan haus dan tahan korosi |
| 6 | Lampu UV | Dua lampu UV 2KW dipasang di atas, tinggi dan sudut tetap |
| 7 | Penyinaran yang Efektif | 350 mm × 400 mm |
| 8 | Sabuk pengangkut | Teflon conveyor belt, tahan UV dan mudah dibersihkan |
| 9 | Sistem Kontrol Kecepatan | Motor pengatur kecepatan dengan gearbox, kecepatan yang dapat diatur 0-10 m/menit, dikendalikan panel |
| 10 | Lampshade UV | Bahan reflektif profesional (reflektor Alanod Jerman) dengan lensa kuarsa, menyaring sinar inframerah, mengirimkan sinar UV, tingkat pemanfaatan > 38% |
| 11 | Sistem pendingin | Pendinginan udara paksa |
| 12 | Sistem kontrol | Kontrol independen untuk setiap lampu, konversi cahaya kuat / lemah, intensitas cahaya 75%-100% disesuaikan |
| 13 | Komponen Listrik | Relay Omron, kontaktor CHNT, CKC delay timer, saklar Izumi Jepang |
| 14 | Perangkat Keamanan | Pemutus sirkuit kebocoran, pencegahan suhu tinggi, perlindungan overload mesin trafo, sekring sirkuit kontrol - semuanya sesuai dengan standar keselamatan internasional |
Kami adalah produsen dengan hak impor dan ekspor independen. Pabrik kami terletak di Guangdong, Cina.
Kami dapat menguji sampel Anda pada mesin kami dan menyediakan dokumentasi video. Kunjungan pabrik tersedia. Produk kami banyak digunakan di Cina, Asia Tenggara, Amerika Selatan, dan Eropa.
Produk kami memenuhi standar GMP & ISO dan telah lulus sertifikasi CE untuk ekspor.
Satu tahun garansi dengan perawatan seumur hidup dan dukungan teknis.
-
