Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | OSMANUV |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-IR-200 |
| Dokumen: | 5 Meters IR Drying Machine.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | bungkus kayu |
| Waktu pengiriman: | 10 HARI |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | Negosiasi |
|
Informasi Detail |
|||
| Fitur keamanan: | Perlindungan Overheat | Jenis: | mesin pengering |
|---|---|---|---|
| Ban berjalan: | Sabuk jaring teflon | Tegangan: | 220v |
| Kekuatan: | 2000W | Fungsi: | Cangkir Plastik Pengering Cepat |
| Pengaturan Timer: | 1-60 menit | Jaminan: | 1 tahun |
| Metode Pemanasan: | Inframerah | Warna: | Komputer Putih |
| Lebar Kering Efektif: | 200 mm | Cahaya: | Tabung IR inframerah |
| Kondisi: | Baru | ||
Deskripsi Produk
Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Product Description

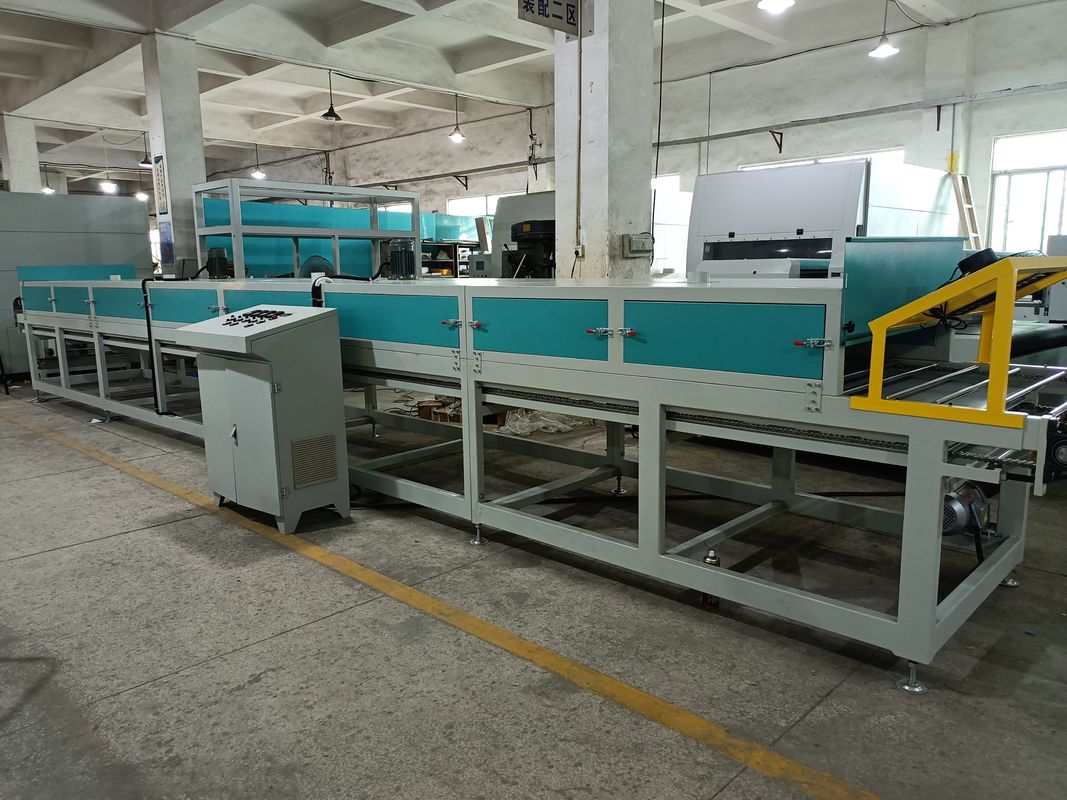

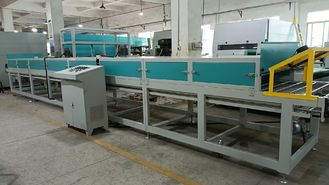

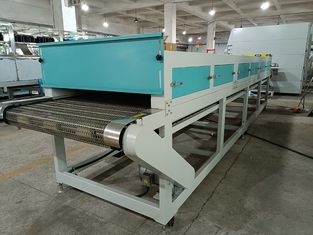

The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
Technical Parameters
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |

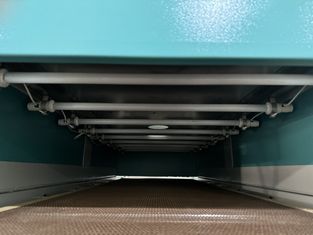

| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |
| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
Application
✔ Printing Industry: Drying UV inks on packaging materials.
✔ Electronics: Curing adhesives on PCB boards.
✔ Textiles: Heat-setting for synthetic fabrics.
Customization
-
Adjustable belt width (standard: 200mm).
-
Optional additional heating zones for higher temperatures.
Key Features
✅ Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens.
✅ Precision Control: Delta inverter ensures stable speed and temperature.
Support and Services
-
24/7 technical support via 400-666-2388.
-
On-site installation available in China.
Packing and Shipping
-
Wooden crate packaging (IP65 standard).
-
FOB Dongguan, lead time: 15 days.
FAQ
Q: Can it handle flammable materials?
A: Yes, with optional nitrogen atmosphere customization.
