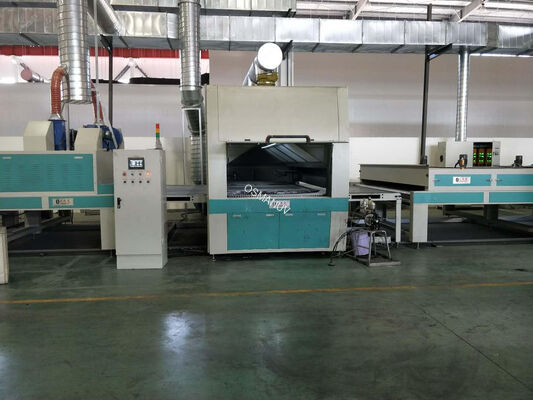

High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | Osmanuv |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-PT-1320 |
| Dokumen: | automatic spray coating mac...ne.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak kayu |
| Waktu pengiriman: | 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Kotak listrik: | kotak listrik independen | Coating Qty: | 10 ~ 16g/sqm |
|---|---|---|---|
| Pembakar: | Pembakar Riello asli; 2 set | Fitur: | Efisien |
| Kecepatan menggorok: | 50-350m/mnt | Bahan: | Karet alami,PVC |
| Tinggi tumpukan pengiriman: | 1100 mm | cara kering: | Lampu UV |
| Menyoroti: | automatic spray coating machine for wood doors,high-volume spray coating line,precision finish spray coating machine |
||
Deskripsi Produk
High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution
Keywords: wood door spray coating line, automatic painting system, furniture door finishing, customizable spray equipment
Composition of Production Line:
Automatic loading system, conveyor belt, pre-treatment cleaning station, robotic spray guns, UV curing tunnel, drying oven, quality inspection zone, unloading system.
Product Description:
This fully automatic spray coating line is designed for high-volume production of wood doors, ensuring uniform surface finishing with precise paint application and efficient curing.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Max. Door Size | 1200mm x 2500mm (customizable) |
| Line Speed | 2-8 m/min (adjustable) |
| Spray Method | Electrostatic/Robotic (customizable) |
| Drying System | UV/IR Hybrid (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Control System | Siemens PLC + Touchscreen HMI |
| Paint Usage Efficiency | >95% (with electrostatic) |
Application:
Surface coating for interior/exterior wood doors, cabinet doors, and architectural woodwork.
Customization:
Fully customizable for door dimensions, paint type, drying method, and automation level.
Feature:
-
Robotic path programming for complex designs
-
Paint recycling system reducing waste
-
Energy-efficient drying technology
-
Real-time thickness monitoring
Support and Services:
Installation supervision, operator training, 24/7 technical support, annual maintenance contracts.
Packing and Shipping:
Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available.
FAQ:
Q: Can it handle different door styles?
A: Yes, the system is customizable for panel doors, flush doors, and carved designs.
