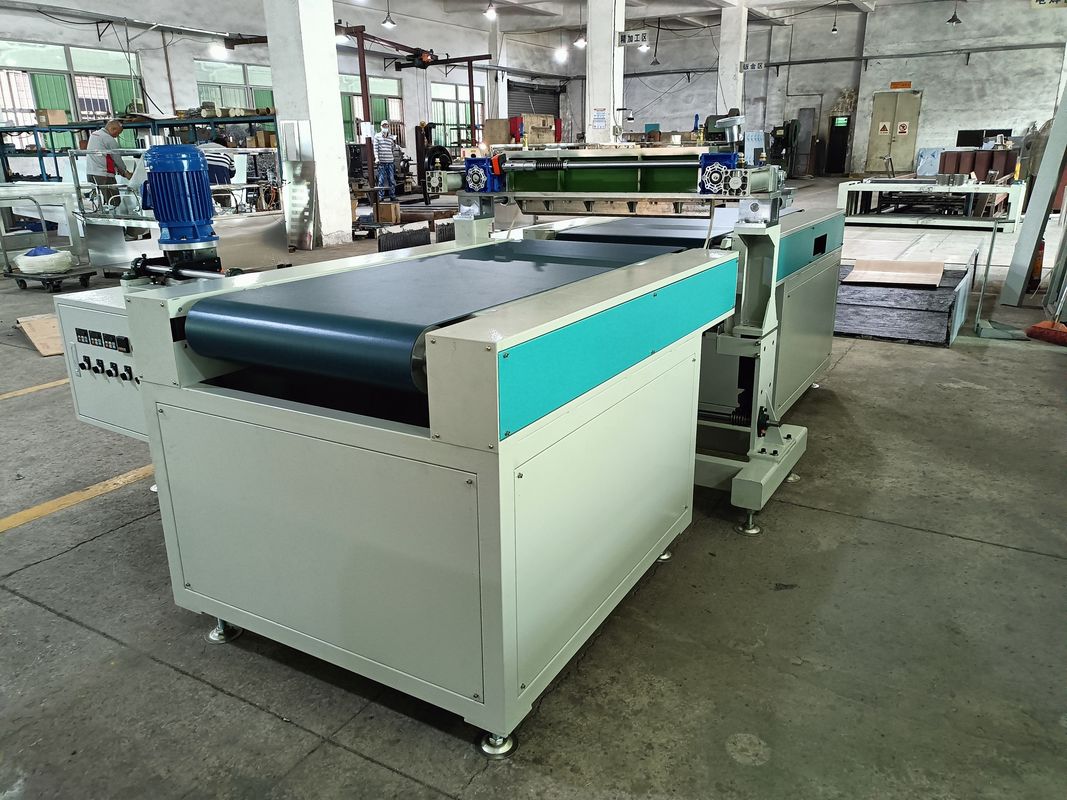

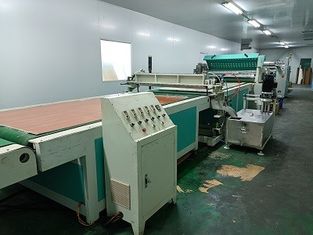

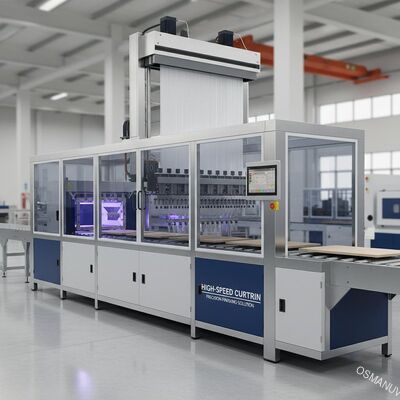

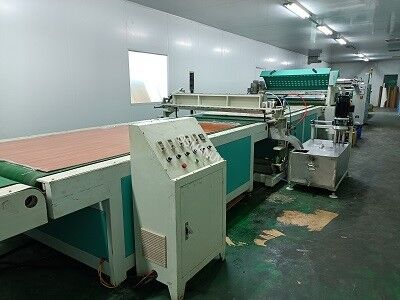

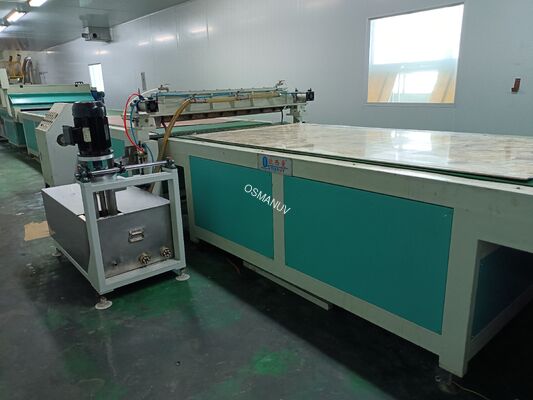

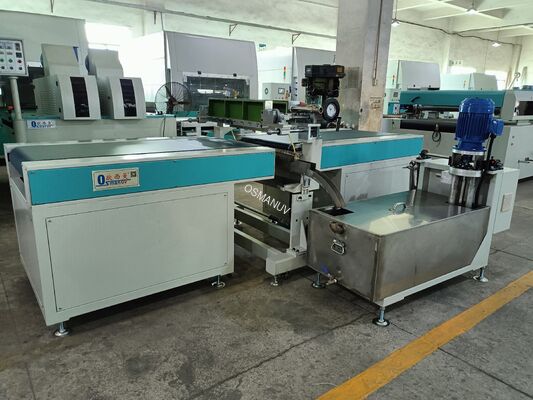

High-Speed Curtain Coating Line for Flat-Panel Furniture - Precision Finishing Solution
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | Osmanuv |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-LT-620 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak kayu |
| Waktu pengiriman: | 35 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Efisiensi Pelapisan: | Hingga 95% | Cat: | UV/PU atau cat berbasis air |
|---|---|---|---|
| Keseragaman pelapis: | ± 2% | Daya konveyor: | 2.2kw |
| Tegangan kerja: | Sesuai persyaratan pelanggan | Kapasitas Tangki Cat: | 250kg |
| Perawatan Permukaan Pelapisan: | Tirai | Aplikasi: | Kemasan fleksibel, konversi kertas, pencetakan label, dll. |
Deskripsi Produk
High-Speed Curtain Coating Line for Flat-Panel Furniture - Precision Finishing Solution
Keywords: curtain coating line, flat-panel furniture coating, precision coating equipment, customizable finishing system
Composition of Production Line:
Automatic feeding system, precision curtain coater, leveling conveyor, multi-zone drying oven, UV curing system, cooling section, automated stacking
Product Description:
This high-speed curtain coating line delivers uniform, high-gloss finishes for flat-panel furniture with exceptional efficiency and minimal material waste, perfect for large-scale production.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Width | 600-2400mm (customizable) |
| Line Speed | 10-40 m/min (adjustable) |
| Film Thickness | 30-300μm (customizable) |
| Drying Temperature | 50-120°C (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
Application:
Office furniture, cabinet doors, wall panels, and large flat surface coating
Customization:
Fully customizable coating width, drying temperature, and line speed
Feature:
-
95% material utilization rate
-
Automatic viscosity control
-
Quick-change coating head
-
Energy-efficient drying
Support and Services:
Installation supervision, operator training, technical support
Packing and Shipping:
Export-standard packaging, professional logistics service
FAQ:
Q: Can it handle different panel sizes?
A: Yes, the line is customizable for various panel dimensions
