Industrial Food Sterilization & Drying Oven | High-Efficiency Thermal Processing
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | Osmanuv |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-WBHG-1320YP |
| Dokumen: | microwave drying equipment.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak kayu |
| Waktu pengiriman: | 30 ~ 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Magnetron: | Panasonic, Samung | Bahan: | baja tahan karat |
|---|---|---|---|
| Sistem Kontrol: | Plc | Ketebalan yang dapat diterima: | 0,10 ~ 0,6 mm |
| Banausic: | baja tahan karat | warna: | Putih |
| Kemampuan: | baja tahan karat | Kisaran suhu: | 50-200 ℃ |
| Menyoroti: | industrial food sterilization oven,high-efficiency drying oven,microwave vacuum thermal processing equipment |
||
Deskripsi Produk

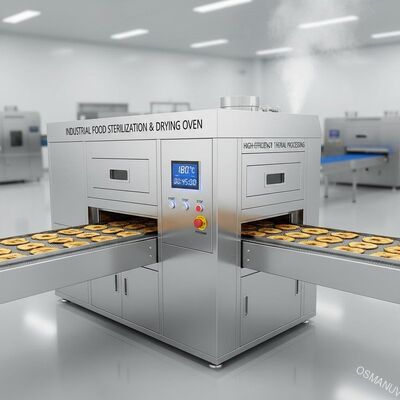

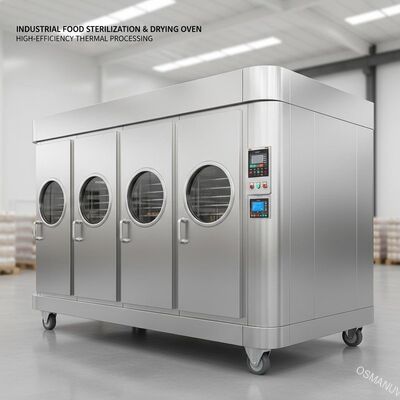

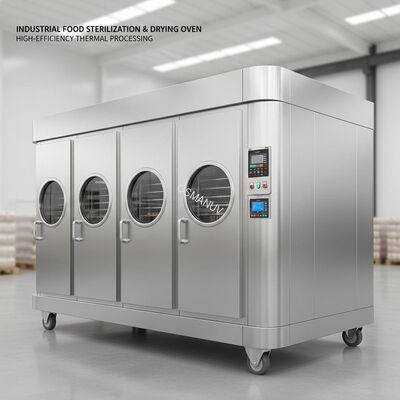

Industrial Food Sterilization & Drying Oven | High-Efficiency Thermal Processing
1. Composition of Production Line
A complete line includes: stainless steel feeding conveyor, pre-heating zone, multi-stage hot air drying & sterilization chamber, cooling section, control panel with data logging, and discharge conveyor.
2. Product Description
This industrial-grade oven is designed for simultaneous drying and sterilization of various foods. It utilizes precisely controlled high-temperature hot air to reduce moisture content and eliminate pathogens, ensuring food safety and extending shelf life while preserving product quality.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | FSD-1000 (Standard Model, Customizable) |
| Heating Source | Electric / Gas / Steam (Customizable) |
| Temperature Range | 50°C - 150°C (Adjustable) |
| Belt Width | 500mm - 1200mm (Customizable) |
| Conveyor Material | Food-grade SS304 / PTFE-coated wire mesh |
| Control System | PLC + Touch Screen HMI with recipe storage |
| Sterilization Efficiency | Achieves >99.5% pathogen reduction |
4. Application
Ideal for drying and sterilizing fruits, vegetables, herbs, meat jerky, and ready-to-eat meals.
5. Customization
We offer fully customizable solutions. The heating method, conveyor length/width, and zoning (multiple temperature stages) can be tailored to your specific product and output requirements.
6. Feature
-
Constructed with food-grade stainless steel (SS304) for easy cleaning and corrosion resistance.
-
Uniform hot air circulation for consistent results.
-
Energy-efficient design with heat recovery options.
-
Complies with food safety standards (e.g., HACCP, ISO 22000).
7. Support and Services
We provide installation & commissioning, operational training, and a 12-month warranty. 24/7 technical support is available.
8. Packing and Shipping
The machine is packed in a weather-proof wooden case for safe sea or air freight. All parts are clearly marked for easy reassembly.
9. FAQ
-
Q: Can it handle different food products on the same line?
-
A: Yes, the PLC can store different recipes (temperature, time) for various products, allowing for quick changeover.
-
-
Q: What is the energy consumption?
-
A: It varies by model and heating source. Our energy-efficient design and optional heat recovery system can significantly reduce operating costs.
-
