Bagasse Pulp Molding IR Drying Machine 2.2-Meter Rapid Drying System for Sustainable Tableware Production
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | OSMANUV |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-IR-500 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kemasan kayu |
| Waktu pengiriman: | 30 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Voltase: | 220V, 380V, 380V/220V, 220V/380V, 380V/50Hz | Kondisi: | Baru |
|---|---|---|---|
| dimensi (l*w*h): | Ukuran Khusus, 2200mm L*1000mm W* 1280mm H | Tipe yang digerakkan: | Listrik |
| Jaminan: | 1 tahun | Kekuatan: | 9.5KW |
| Kecepatan pelapis: | dapat disesuaikan, 0,1-3 meter/menit | Lebar lapisan: | 500mm |
Deskripsi Produk
Bagasse Pulp Molding IR Drying Machine 2.2-Meter Rapid Drying System for Sustainable Tableware Production
Product Description

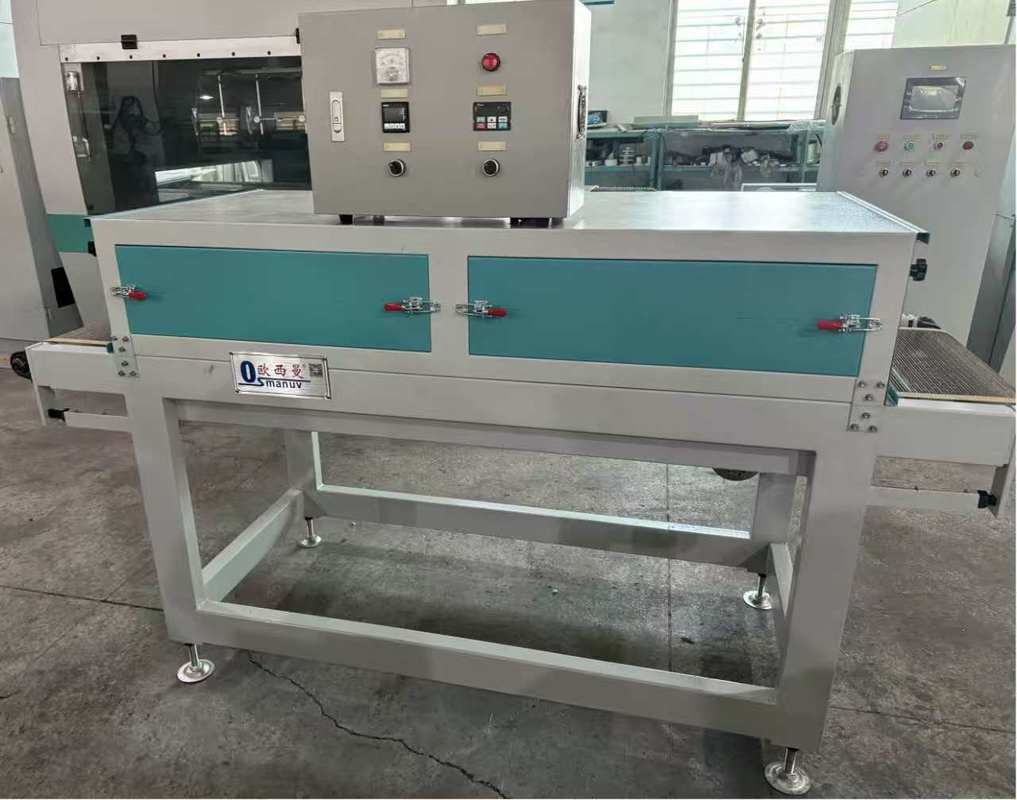

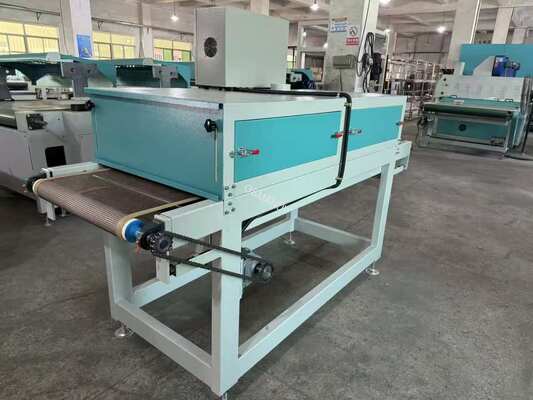

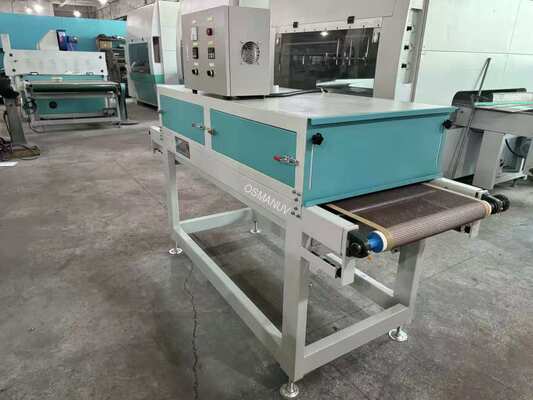

This 2.2-meter infrared drying machine is specially designed for efficient drying of bagasse pulp molded products. It utilizes medium-wave infrared heating technology to ensure rapid and uniform moisture removal, significantly reducing drying time while maintaining product integrity and shape stability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-IR-500 |
| Heating Length | 2.2 meters (Customizable) |

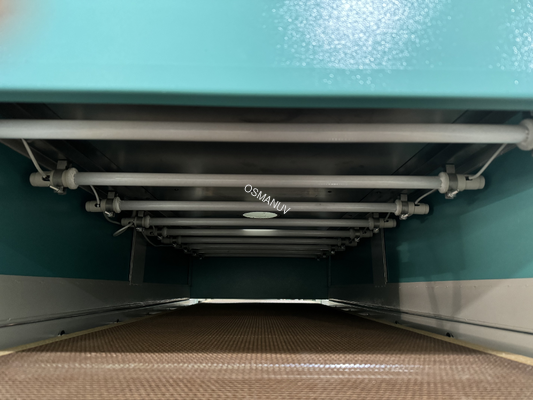

| IR Emitter Type | Medium-wave ceramic infrared |
| Power Capacity | 9.5 kW (Customizable) |
| Temperature Range | 50–250°C (adjustable) |
| Belt Width | 500 mm (Customizable) |

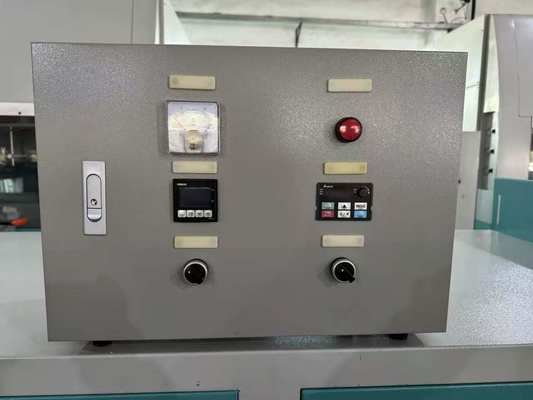

| Control System | PID with touch screen interface |
Application
Drying of bagasse pulp tableware, food containers, egg trays, and packaging products in eco-friendly manufacturing lines.
Customization
-
Customizable IR emitter layout and power zoning
-
Customizable belt material (mesh, wire, Teflon)
-
Customizable thermal insulation and energy recovery setup
Feature
-
Fast and uniform heating
-
Low energy consumption per unit
-
Compact and space-saving design
-
Easy to integrate with existing lines
Support and Services
-
On-site installation support
-
Drying process optimization
-
Operator training manual
-
12-month warranty and spare parts supply
Packing and Shipping
-
Solid wooden crate with waterproof film
-
Internal foam cushioning
-
FOB/CIF shipping terms available
FAQ
Q: What is the typical drying time for bagasse pulp products?
A: Drying time ranges from 3–8 minutes depending on product thickness and initial moisture content.
