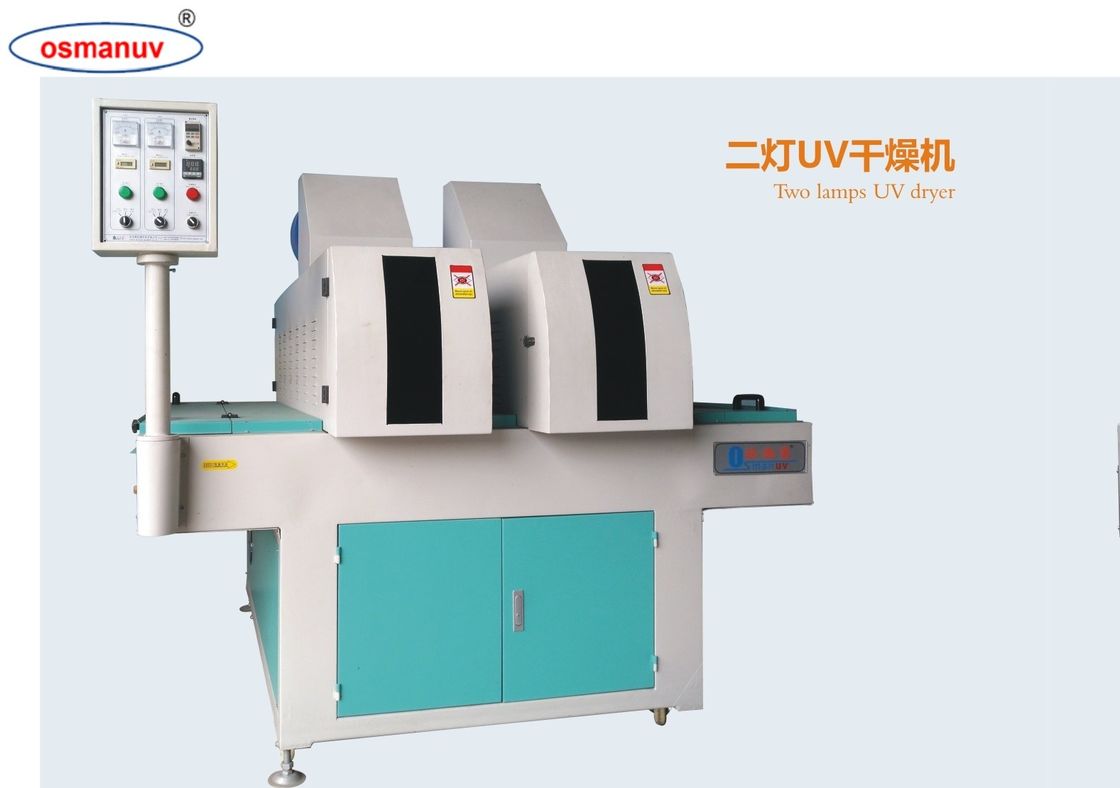

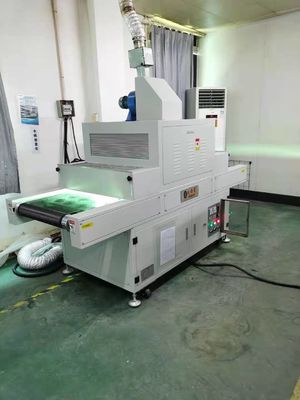

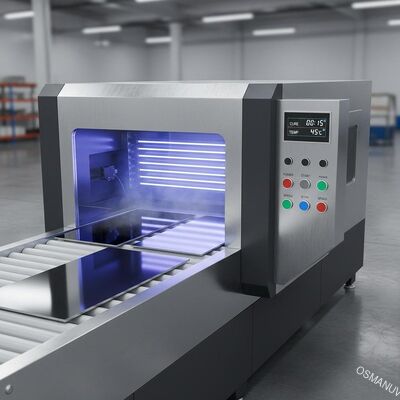

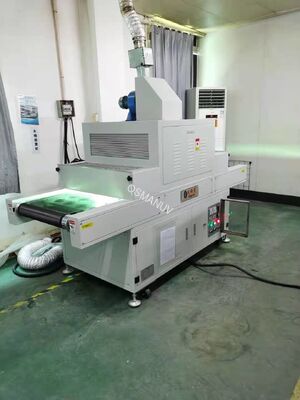

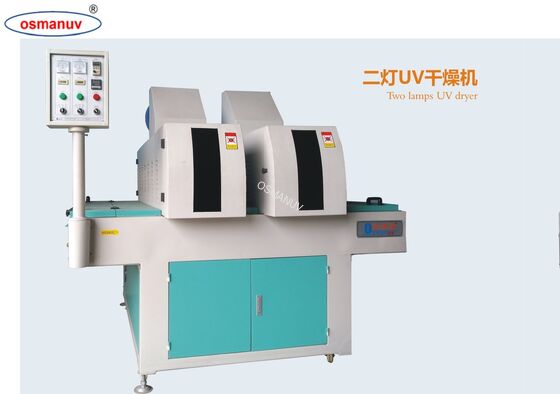

Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | OSMANUV |
| Sertifikasi: | ISO9001 |
| Nomor model: | osm-uv-1320Ⅱ |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kemasan kayu |
| Waktu pengiriman: | 35 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Nama produksi: | Mesin pengeringan UV dua lampu | Ukuran mekanis: | Panjang 1900mm × lebar 2230mm × tinggi 1410mm. (Tergantung ukuran sebenarnya) |
|---|---|---|---|
| ketinggian dari tanah ke ban berjalan: | 850-900mm dapat disesuaikan | Metode penyampaian: | Dari kiri ke kanan |
| Tegangan catu daya: | 380V 50HZ, sistem lima kabel tiga fase | Kondisi: | Baru |
| Jaminan: | 1 tahun | Kecepatan: | 1-15 m/menit |
Deskripsi Produk
Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Product Description
This specialized two lamp UV curing system is engineered for aluminum panels and metal substrates, featuring enhanced cooling systems and precise intensity control. The machine delivers consistent curing performance for various metal coatings while preventing heat-related substrate deformation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-UV-1320Ⅱ |
| Lamp Type |
2 British PRIMARC 10KW 1387mm mercury mercury lamps |
| Cooling System | Forced air + water cooling |
| Intensity Control | 0-100% adjustable |
| Wavelength Range | 200-450 nm |
| Control Interface | Touch screen with recipe storage |
Application
Curing of UV coatings on aluminum composite panels, metal sheets, automotive parts, and industrial metal components requiring high-quality surface finishing.
Customization
-
Customizable cooling system configuration
-
Customizable intensity control ranges
-
Customizable safety interlock systems
Feature
-
Advanced thermal management
-
Precise intensity adjustment
-
Robust metal construction
-
Minimal heat transfer to substrate
Support and Services
-
Technical consultation service
-
Process optimization support
-
Regular maintenance programs
-
Emergency repair service
Packing and Shipping
-
Custom-sized protective crate
-
Component-specific packaging
-
Detailed installation manual
FAQ
Q: How does it prevent aluminum panels from overheating?
A: The integrated water cooling system and efficient ventilation maintain substrate temperature below 60°C during curing.
