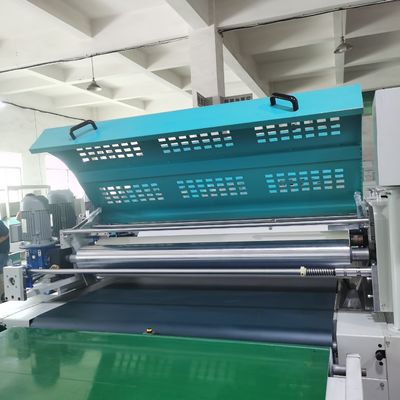

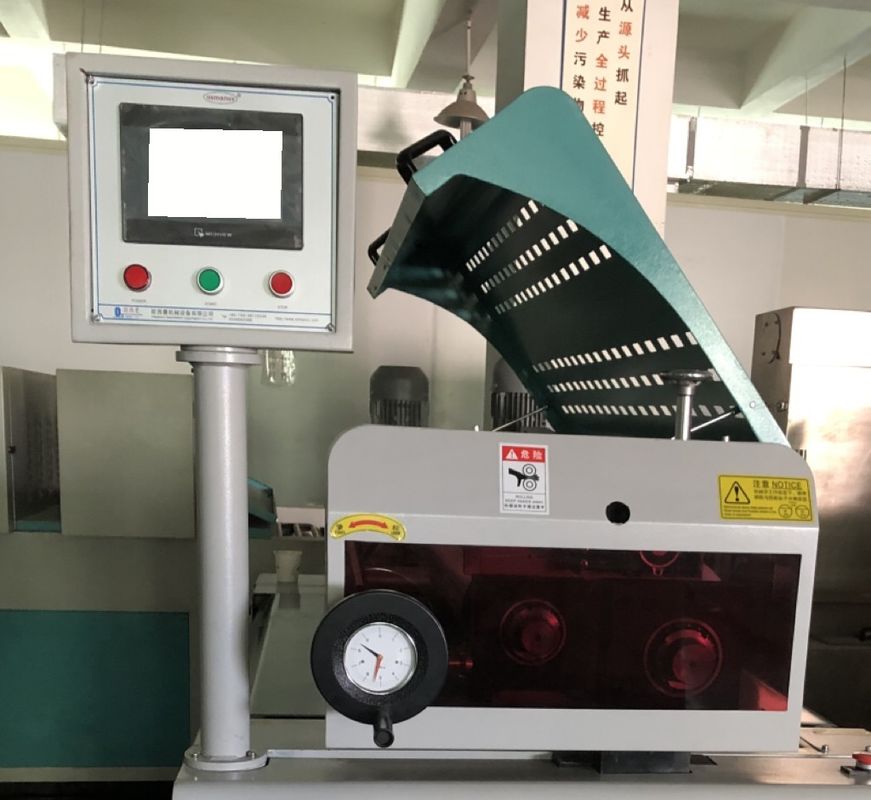

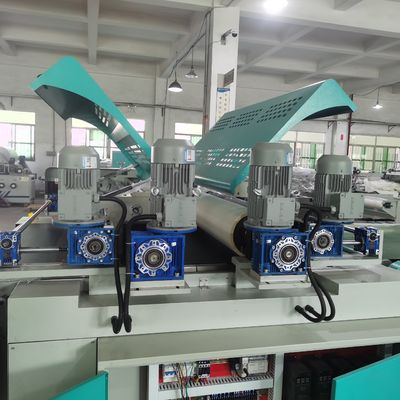

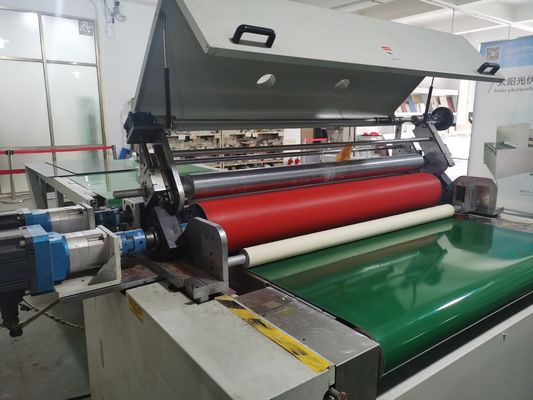

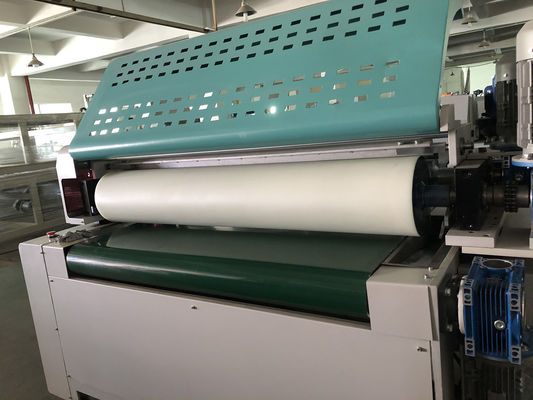

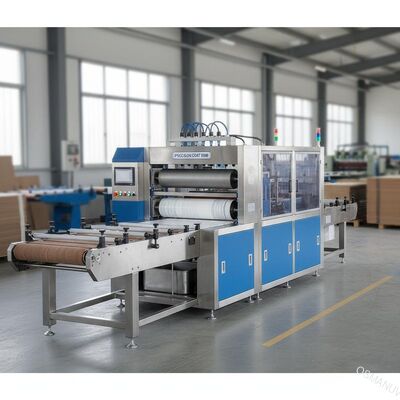

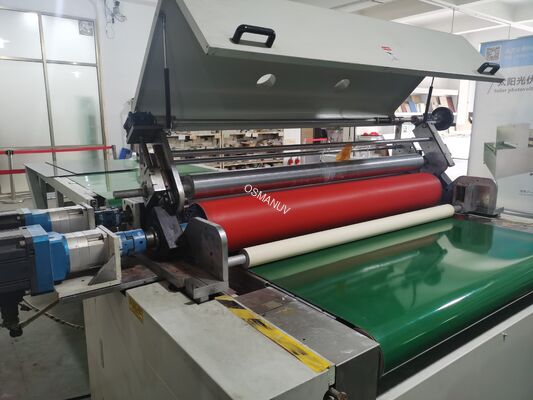

Furniture Panel Precision Roller Uniform Coating Application Machine
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | OSMANUV |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-GT-800II |
| Dokumen: | single roller coating machi...ne.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kemasan kayu |
| Waktu pengiriman: | 35 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Nama produksi: | Mesin Pelapis Rol Ganda Sepenuhnya Presisi | dimensi (l*w*h): | Dapat disesuaikan. 1800mm (L) × 1880mm (W) × 1520mm (H) (Tergantung pada dimensi sebenarnya) |
|---|---|---|---|
| Lebar lapisan: | 800mm | Kecepatan pelapis: | dapat disesuaikan, 0-20 meter/menit |
| Voltase: | 380V/50Hz | Menyampaikan arah: | Dari kiri ke kanan |
| Jaminan: | 1 Tahun, Satu Tahun, 12 bulan | Kondisi: | Baru |
| Menyoroti: | furniture panel roller coating machine,precision roller coating equipment,uniform coating application machine |
||
Deskripsi Produk
Furniture Panel Precision Roller Uniform Coating Application Machine
Product Description
This precision roller coating machine delivers exceptional finish quality for furniture panels and wooden substrates. Utilizing advanced roller technology and precise viscosity control, it achieves uniform coating distribution with minimal material waste, making it ideal for high-quality furniture manufacturing and wood product finishing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-GT-800II |
| Coating Width | 800 mm (Customizable) |
| Roller Material | Precision steel with chrome plating |
| Coating Thickness | 10-200 μm (adjustable) |
| Line Speed | 5-20 m/min |
| Viscosity Range | 50-500 cP |
| Control System | PLC with touch screen interface |
Application
Precision coating of furniture panels, cabinet doors, wooden flooring, and decorative wood products requiring high-quality surface finishing.
Customization
-
Customizable roller hardness and surface treatment
-
Customizable coating width from 1500mm to 3200mm
-
Customizable drying system integration
Feature
-
Exceptional coating uniformity
-
Precise thickness control
-
Quick roller change system
-
Low maintenance design
Support and Services
-
Installation supervision and commissioning
-
Operator training program
-
18-month warranty period
-
Remote technical support
Packing and Shipping
-
Heavy-duty wooden crate packaging
-
Professional export standard
-
Comprehensive protection
FAQ
Q: What is the coating thickness accuracy?
A: The system maintains ±2 μm thickness consistency across the entire panel surface.
