High Speed 1300mm Wide Panel Laminating Machine for Scratch Resistant Furniture Surfaces
Detail produk:
| Tempat asal: | Tiongkok |
| Nama merek: | OSMANUV |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-FMJ-1300I |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kemasan kayu |
| Waktu pengiriman: | 30 hari |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Dimensi (P*L*T): | Ukuran Khusus, 6300mm × 1550mm × 1200mm | Lebar efektif: | 1300mm |
|---|---|---|---|
| Voltase: | 380V/50Hz | menyampaikan kecepatan: | Dapat disesuaikan, 1-20m/menit, dapat diatur sendiri |
| Kekuatan: | 1,5kw | Layanan purna jual disediakan: | Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan teknis video, Dukungan online |
| Kondisi: | BARU | Jaminan: | 1 tahun |
| Menyoroti: | 1300mm wide panel laminating machine,high speed film laminating machine,scratch resistant furniture laminating machine |
||
Deskripsi Produk

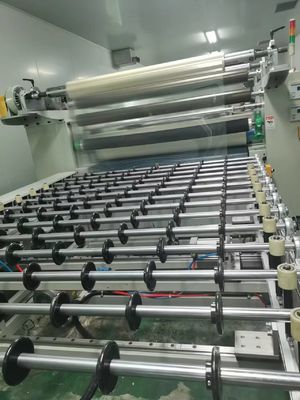

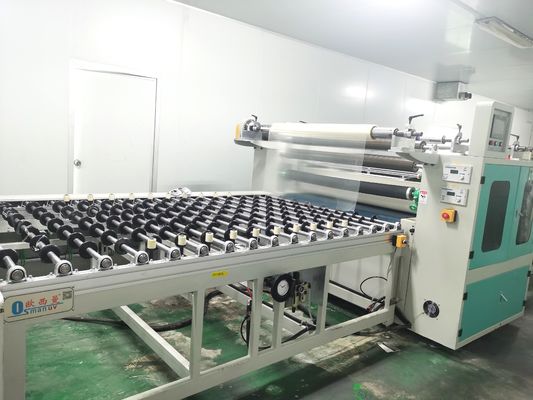

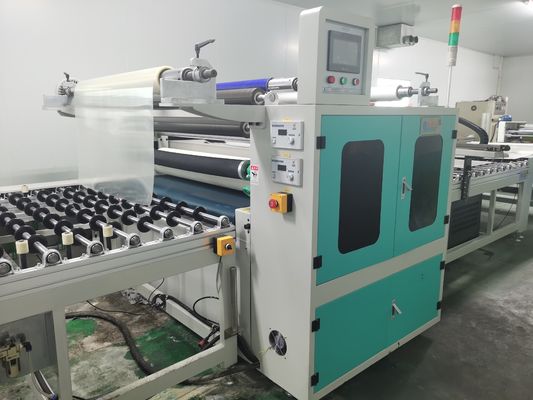

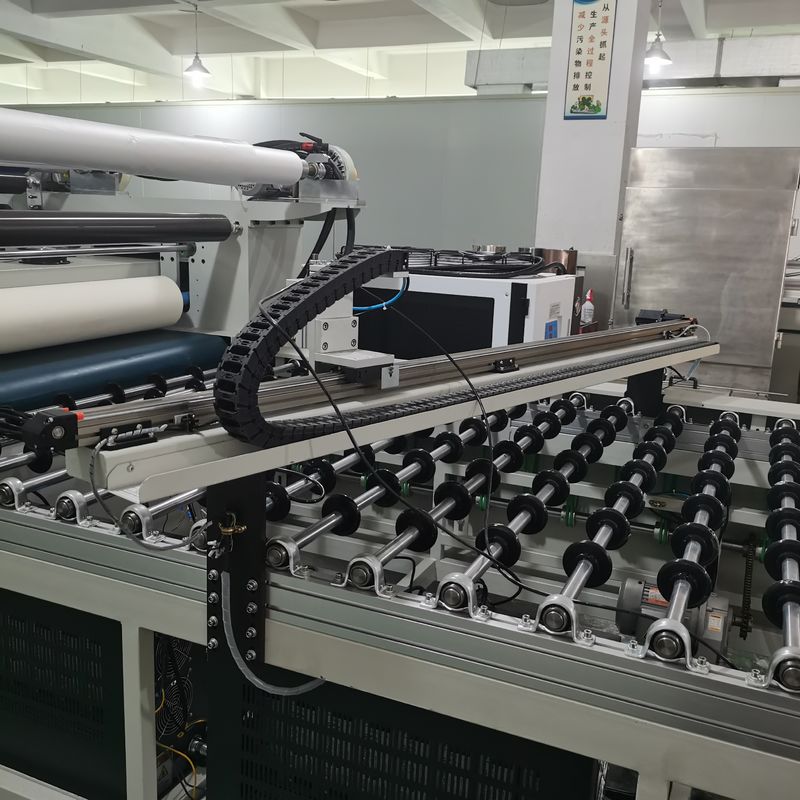

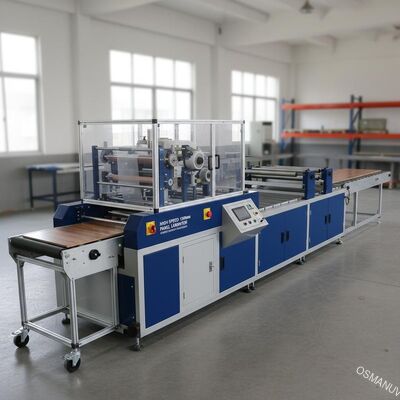

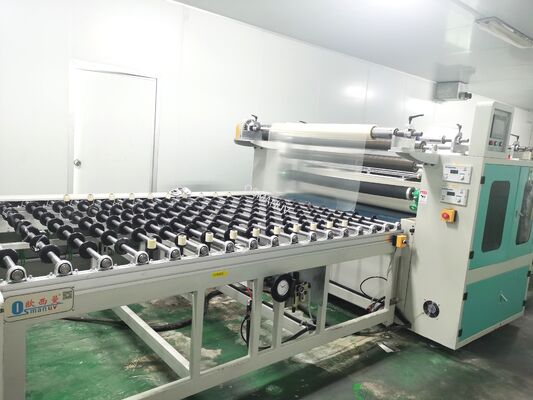

High Speed 1300mm Wide Panel Laminating Machine for Scratch Resistant Furniture Surfaces
Product Description:
This high-speed laminating machine is engineered for applying protective films to large furniture panels up to 1300mm wide. It ensures a flawless, bubble-free finish that provides a durable, scratch-resistant surface for furniture during storage and transport. The dual-station unwinding system allows for continuous, non-stop operation, significantly boosting production line efficiency for furniture manufacturers.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Model | OSM-FMJ-1300Ⅰ |
| 2 | Effective Working Width | 1300 mm |
| 3 | Max. Conveying Speed | 20 m/min |
| 4 | Conveying Thickness Range | 3-80 mm |
| 5 | Minimum Panel Length | 300 mm |
| 6 | Main Roller Material | Silicone Roller |
| 7 | Drive System | Taiwan Delta Inverter Control |
| 8 | Total Power | 1.5 kW |
| 9 | Voltage | 380V, 50Hz, 3-Phase |
| 10 | Overall Dimensions | 6300mm × 1550mm × 1200mm |
Application:
Ideal for applying protective films to MDF, particle board, melamine panels, finished wooden doors, and large-format furniture components.
Customization:
We offer customizable roller hardness and pressure settings to perfectly match different film types and panel substrates, ensuring optimal adhesion without damage.
Feature:
-
Dual-station film unwinding for zero-downtime operation.
-
High-precision automatic film cutting system.
-
Robust construction with dynamically balanced drive wheels for vibration-free performance.
-
Schneider electrical components ensure reliability.
Support and Services:
-
One-year machine warranty, half-year for electrical components.
-
On-site installation and commissioning services available (service fee applies).
-
Lifetime technical support and remote assistance.
Packing and Shipping:
The machine is securely packed in an export-worthy wooden crate. Delivery lead time is 30 working days after receiving full payment. Shipping terms are FOB.
FAQ:
-
Q: Can this machine handle both glossy and matte finish protective films?
A: Yes, the roller pressure and speed are adjustable and customizable to suit various film finishes without causing marks or bubbles. -
Q: What is the maximum production throughput?
A: At the maximum speed of 20 meters per minute, the theoretical throughput is very high, but the effective output depends on panel size and operator speed for loading/unloading.
