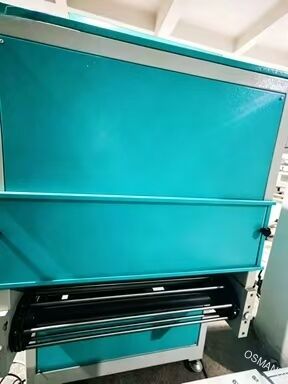

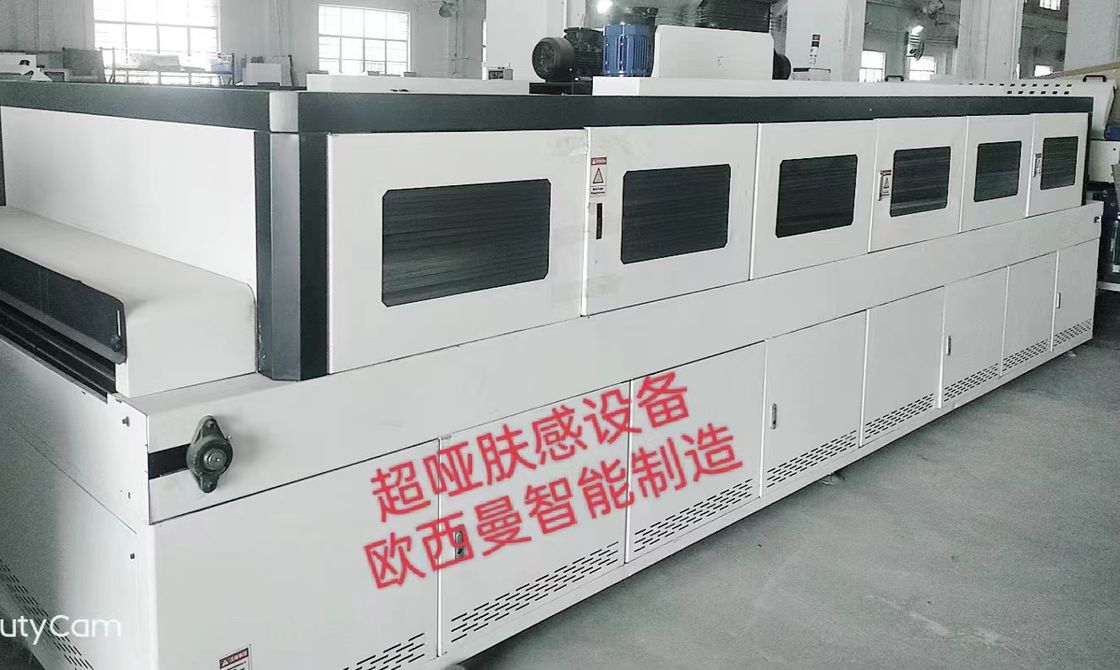

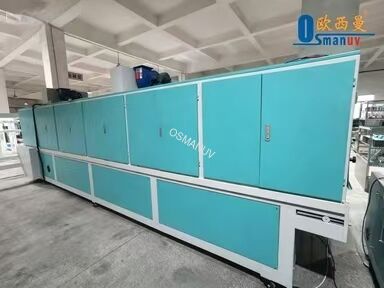

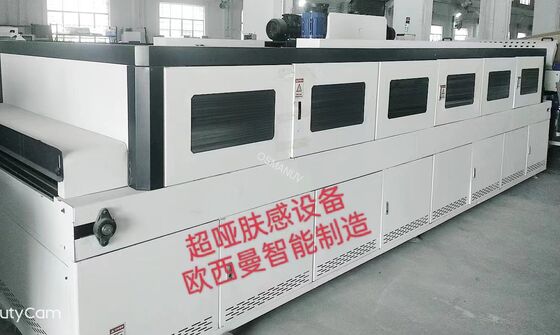

Excimer Lamp Curing System with Soft-Touch Finish 100% Matt and Customizable UV Curing Line for Wood and Plastic Panels
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | OSMANUV |
| Sertifikasi: | ISO9001 |
| Nomor model: | Spesifikasi |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 Set |
|---|---|
| Harga: | Bisa dinegosiasikan |
| Kemasan rincian: | Kemasan kayu |
| Waktu pengiriman: | 30-45 hari |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Kondisi: | Baru | Nama Produk: | SGUV-650 mesin pelapis uv kecil dengan Lebar Pelapis 630mm, Mesin Pelapis Uv Digital Otomatis Berkec |
|---|---|---|---|
| Kecepatan pelapisan: | Dapat disesuaikan, 150-500m2/jam, 0-5 meter/menit, 2,5m/menit, dapat diatur sendiri | Warna: | Anda dapat memutuskan, pelangi dan sebagainya, emas, Disesuaikan, sliver |
| Lebar lapisan: | 650mm, lapisan 910mm, 440mm | Penggunaan: | Mesin pelapis uv spot, pelindung cetakan digital |
| Bahan: | PP, bahan laser berperekat, gelas botol, Logam, PVC | ||
| Menyoroti: | Excimer lamp UV curing system,Customizable UV curing line,Matt finish UV curing machine |
||
Deskripsi Produk
Excimer Lamp Soft-Touch & Matt Finish Curing System for Wood/Plastic Panels
The excimer lamp surface finishing machine uses a 172nm excimer lamp (VUV) to cure ultra-thin coatings, creating a soft-touch, velvet-like, or matte surface on various substrates, including:
- Wood-based panels (MDF, particleboard)
- PVC / PET films
- Plastic sheets (ABS, PC, PMMA)
- Automotive interior parts
- Electronic housings
- Furniture and flooring materials
Unlike conventional UV curing, excimer technology achieves 100% matt finish (gloss level as low as 0-5 GU) without using matting agents. The process produces a micro-shrinkage surface that scatters light, resulting in an elegant soft-skin feel, anti-fingerprint properties, and high scratch resistance.
This system operates under inert nitrogen atmosphere to prevent oxygen inhibition, ensuring consistent curing quality. The entire line can be customized for flat panel, roll-to-roll, or 3D-shaped substrates.
Technical Parameters
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Excimer Wavelength | 172 nm (VUV) | ✔ Yes (e.g., 222 nm available) |
| Lamp Power | 200 W/cm - 400 W/cm | ✔ Yes (adjustable) |
| Effective Curing Width | 600 mm / 1300 mm / 1600 mm | ✔ Yes (up to 2200 mm) |
| Conveyor Speed | 5 - 30 m/min (standard) | ✔ Yes (up to 60 m/min) |
| Substrate Thickness | 3 mm - 50 mm (panels) | ✔ Yes |
| Nitrogen Consumption | 5 - 15 m³/h | ✔ Yes (low-consumption design) |
| Gloss Level (60°) | 0 - 5 GU (ultra-matt) | ✔ Yes (semi-matt also available) |
| Coating Thickness | 5 - 30 µm | ✔ Yes |
| Lamp Lifetime | 8,000 - 10,000 hours | - |
| Power Supply | 380V / 400V / 480V, 50/60Hz, 3-phase | ✔ Yes (custom voltage) |
| Cooling Method | Water-cooled + air-cooled | ✔ Yes |
Applications
- Furniture industry: kitchen cabinets, wardrobes, tables (soft-touch finish)
- Flooring: PVC, laminate, LVT flooring with anti-scratch matt surface
- Automotive interior: dashboard, door panels (anti-glare, soft feel)
- Consumer electronics: laptop covers, phone cases (anti-fingerprint)
- Packaging: premium cosmetic boxes, rigid cartons
- Medical equipment: easy-to-clean, low-glare surfaces
- Decorative films: roll-to-roll soft-touch lamination
Customization Options
We provide full customization for excimer lamp surface finishing lines:
- Working width: from 300 mm to 2200 mm
- Substrate type: flat panel, roll-to-roll, or shaped parts
- Lamp power and number of lamp units (single or dual excimer)
- Nitrogen flow rate and atmosphere control precision
- Coating method: roller coating, curtain coating, or spray
- Integration with existing UV line or printing line
- Fully automatic or semi-automatic operation
- Exhaust and ozone filtration level (for cleanroom environment)
- Custom GUI on PLC touchscreen (multiple languages)
- Explosion-proof configuration for solvent-based coatings
Key Features
- True soft-touch / velvet skin effect without additives
- Ultra-low gloss (0-5 GU) for premium aesthetic
- Anti-fingerprint & anti-smudge surface properties
- High scratch and chemical resistance
- No matting agents → consistent, repeatable finish
- Low-temperature curing - suitable for heat-sensitive substrates
- Oxygen-free nitrogen chamber for maximum cure efficiency
- Energy-efficient - excimer lamps only activate when substrate passes
- Easy maintenance with quick lamp replacement design
- Real-time monitoring of nitrogen level, lamp intensity, and conveyor speed
Support and Services
- Free lab testing - we process your sample for finish evaluation
- Process development support - coating recipe & parameter optimization
- On-site installation and commissioning (optional)
- Operator training at your facility or via video
- 12-month warranty + lifetime remote technical support
- Spare parts availability for excimer lamps, power supplies, nitrogen sensors
- Annual maintenance contract available
Packing and Shipping
Packing:
- Excimer lamp units and electronics: anti-static + foam-lined plywood case
- Frame, conveyor, and chamber: wrapped with stretch film + waterproof PE cover
- Nitrogen system: separate wooden crate
- All packages labeled with handling instructions
Shipping:
- FOB / CIF / EXW by sea, air, or rail
- Express shipping for spare parts
- Delivery time: 30-60 working days (depending on customization level)
Frequently Asked Questions
Q: What is the difference between excimer curing and conventional UV curing?
A: Excimer (172nm) creates a micro-shrinkage layer for ultra-matt and soft-touch effect, while conventional UV gives a glossy, hard finish. We can customize combinations of both.
Q: Can I add an excimer unit to my existing UV line?
A: Yes, we offer retrofit excimer modules that can be integrated into existing conveyor systems.
Q: What substrates are compatible?
A: Wood, MDF, PVC, PET, PP, ABS, PC, and even metal sheets with primer. The system is customizable for heat-sensitive films.
Q: Is nitrogen required?
A: Yes, nitrogen is essential to eliminate oxygen inhibition at 172nm. We supply a complete customizable nitrogen control system with low consumption.
Q: How is the soft-touch feel measured?
A: Subjective tactile evaluation + gloss meter (60° angle). Gloss below 5 GU typically correlates with a pronounced soft-feel effect.
