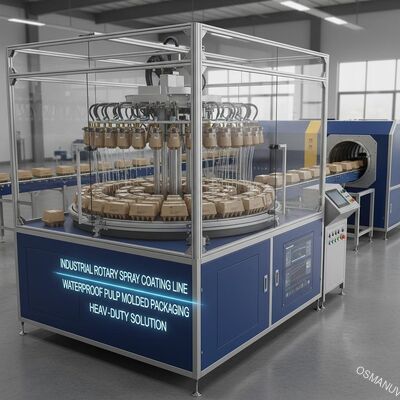

Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | Osmanuv |
| Sertifikasi: | CE |
| Nomor model: | OSM-XT-1024T |
| Dokumen: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak kayu |
| Waktu pengiriman: | 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Keamanan Pelapisan: | Keamanan tinggi | Penggunaan: | Panel datar |
|---|---|---|---|
| Rol sikat: | 200mm | Kekuatan Lampu UV: | 5kw |
| Jenis lampu: | Lampu UV | Efisiensi Pelapisan: | Efisiensi tinggi |
| menyampaikan kecepatan: | 25 - 80 m/mnt | Laporan Tes Mesin: | Asalkan |
| Menyoroti: | industrial rotary spray coating line,waterproof pulp molded packaging machine,heavy-duty pulp molding coating machine |
||
Deskripsi Produk
Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Keywords: industrial pulp coating machine, waterproof rotary spray line, customizable coating equipment

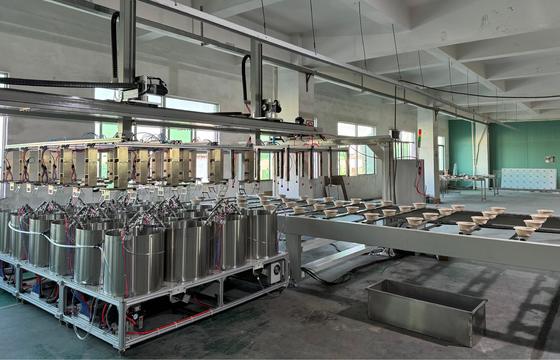

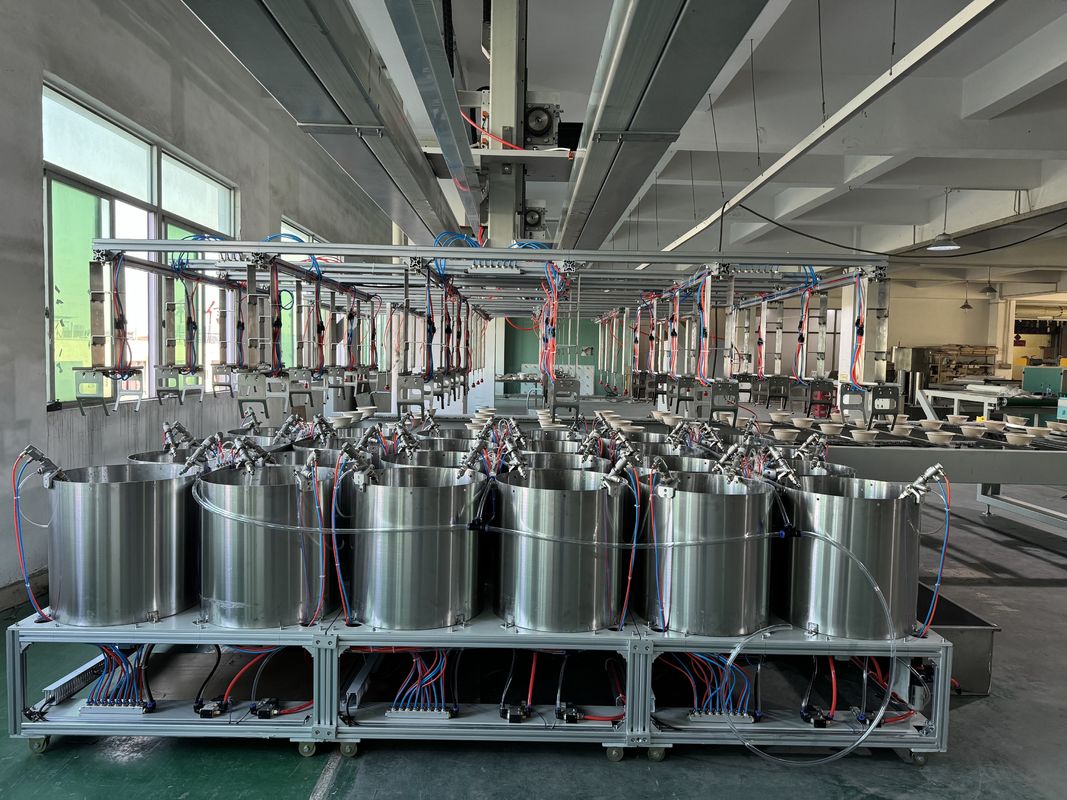

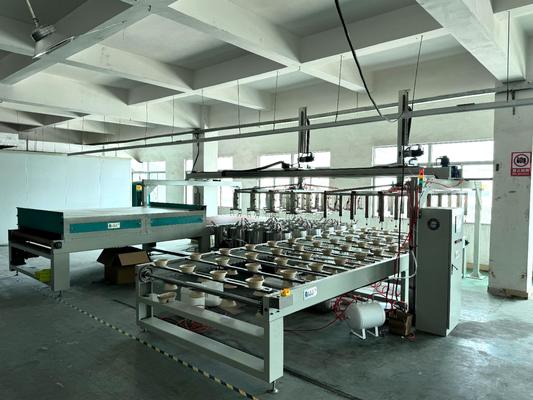

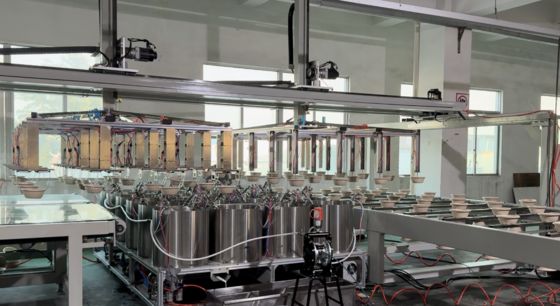

Composition of Production Line:
Robotic loading arm, high-volume rotary spray stations, IR pre-drying tunnel, final curing oven, manual unloading conveyor.
Product Description:
Designed for industrial pulp molded packaging (e.g., electronic cushioning, automotive parts), this line applies robust internal waterproof coatings with superior adhesion and resistance.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Capacity | 500-2000 pcs/hour (customizable) |
| Coating Thickness | 0.05-0.3 mm (adjustable) |
| Air Pressure | 0.6-0.8 MPa |
| Power Consumption | 25-60 kW (depending on configuration) |
| Control System | Mitsubishi PLC + 10" HMI |
| Coating Type | Water-based PU, acrylic (customizable) |
| Footprint | ~15m x 5m x 3m (customizable) |
Application:

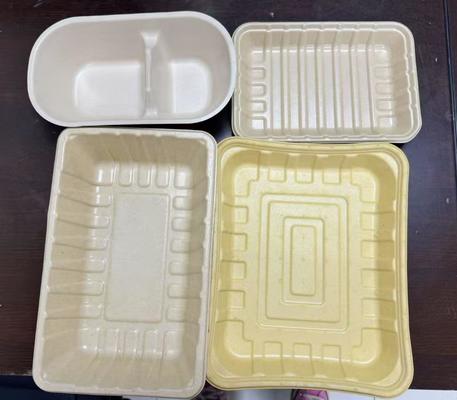

Waterproofing for industrial pulp packaging (edge protectors, corner pads, custom cushioning).
Customization:
Customizable spray head configuration, drying power, and automation level for specific industrial needs.
Feature:
-
Hardened steel construction for durability
-
High-viscosity coating capability
-
Easy maintenance access
-
Low VOC emission design
Support and Services:
On-site commissioning, spare parts kit, operational training, video support.
Packing and Shipping:
Weather-proof wooden crates, anti-rust treatment for all metal parts.
FAQ:
Q: What coating materials are supported?
A: The system is customizable for various water-based coatings per your requirements.
