Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | Osmanuv |
| Sertifikasi: | ISO9001 |
| Nomor model: | OSM-XT-2400T |
| Dokumen: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak kayu |
| Waktu pengiriman: | 30 ~ 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | Perundingan |
|
Informasi Detail |
|||
| Model mesin: | ZP-1300# | Substrat: | Papan semen serat |
|---|---|---|---|
| perhiasan: | Spot UV, Tekstur, Efek Sandy | Kecepatan maksimum: | 5000p/jam |
| Cara pendingin: | Pendinginan udara | Coating Qty: | 10 ~ 16g/sqm |
| Sumber cahaya: | Cahaya uv | Bahan Sabuk Konveyor: | Teflon |
| Menyoroti: | eco-friendly tableware spin coating line,precision internal coating solution,pulp molding coating machine |
||
Deskripsi Produk

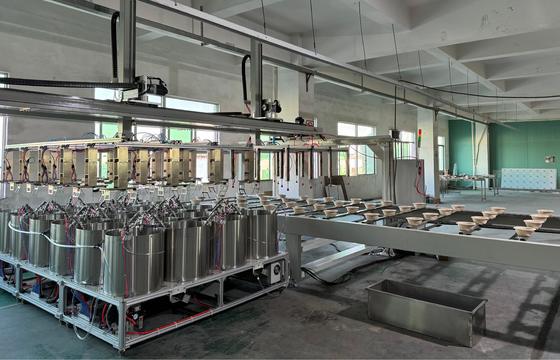

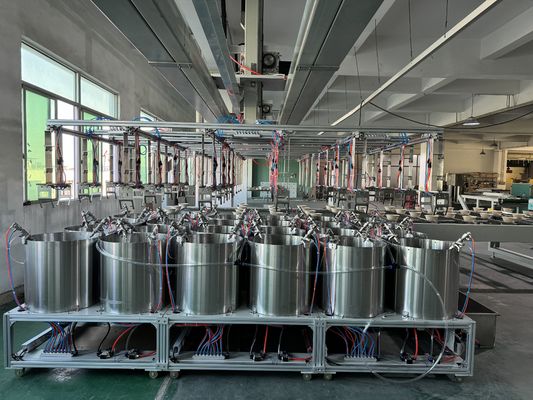

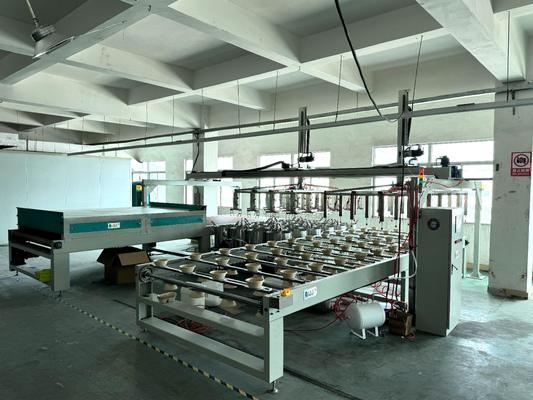

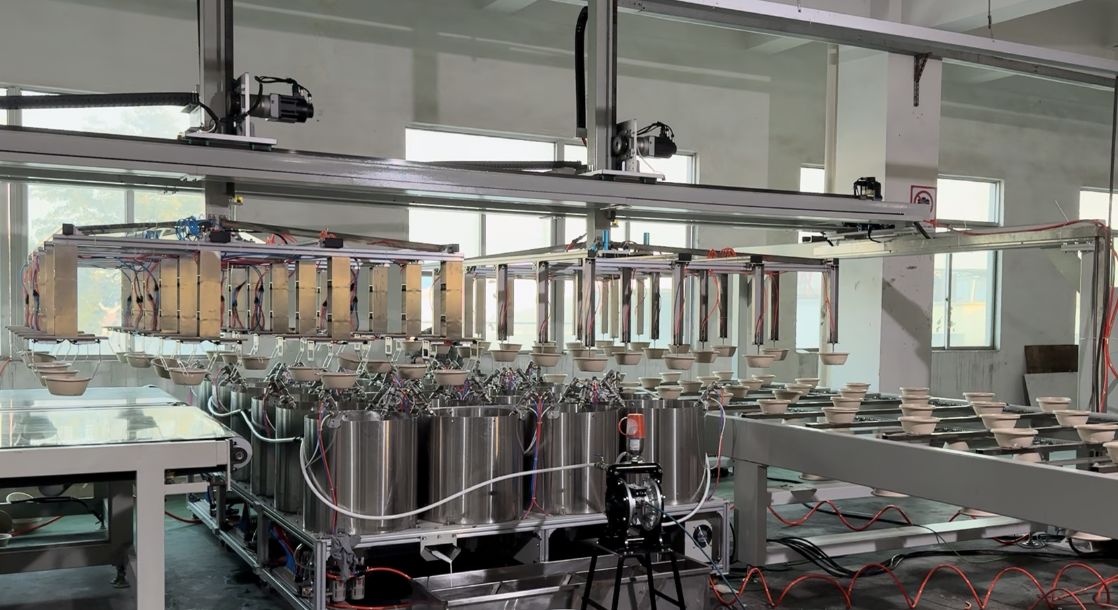

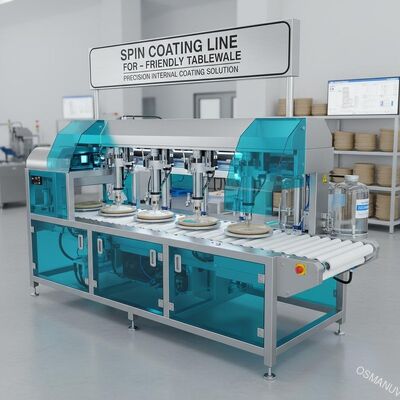

Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
1. Composition of Production Line
This automated line includes: an automatic feeding system, precision spin coater, transition conveyor, multi-stage drying tunnel (IR + hot air), cooling section, and off-loading robotic arm.
2. Product Description
Our precision spin coating line is specifically engineered for applying uniform water-based barrier or release coatings to the interior of green tableware (e.g., molded pulp, bagasse, PLA). It ensures a consistent, pinhole-free film thickness, enhancing product performance for liquid and oil resistance.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | SC-GT100 (Standard Model, Customizable) |
| Coating Type | Aqueous-based coatings (Barrier, Release) |
| Substrate | Molded Pulp, Bagasse, PLA, Paper |
| Coating Uniformity | ±2% film thickness deviation |
| Production Capacity | Up to 30 cycles per minute (Customizable) |
| Control System | PLC + Touch Screen HMI with recipe storage |
| Power Supply | 380V / 50Hz (3 Phase) or Customizable |
4. Application

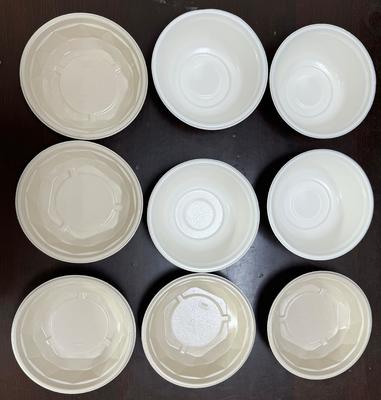

Ideal for applying moisture and oil barriers to plates, bowls, and food containers made from sustainable materials.
5. Customization
We offer fully customizable solutions. The spin coater chuck size, drying tunnel length, and automation level can be tailored to your specific plate dimensions and output targets.
6. Feature
-
High-precision servo-driven spin coater for unmatched film consistency.
-
Patented fixturing to minimize coating splatter and waste.
-
Energy-efficient multi-zone drying for optimal film formation.
-
Minimal coating material consumption due to precise application.
7. Support and Services
We provide installation & commissioning, operational training, and a 12-month warranty. 24/7 technical support is available.
8. Packing and Shipping
The machine is packed in a weather-proof wooden case for safe sea or air freight. All parts are clearly marked for easy reassembly.
9. FAQ
-
Q: What is the minimum film thickness achievable?
-
A: The system can reliably achieve thin films down to 5-10 microns, depending on the coating viscosity.
-
-
Q: Can it handle different plate sizes on the same line?
-
A: Yes, with quick-change tooling and stored PLC recipes, changeover between sizes is fast and simple.
-
