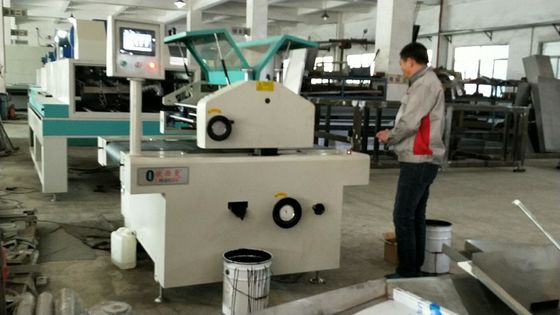

Lebar Effecive Uv Painting MDF Spray Coating Machine 180m / Min 620mm
180m / mnt Mesin Pelapis Semprot
,Mesin Pelapis Semprot MDF 620mm
,mesin lukis uv MDF
620mm Efektif Lebar UV Painting Spray Coating Machine dengan kecepatan 180m / Min.Mesin pelapis kinerja tinggi ini dirancang untuk primer dan aplikasi lapisan atas pada berbagai bahan termasuk kayu datar, MDF, aluminium, furnitur panel, dan panel PVC.
- Membuat lapisan permukaan yang seragam tanpa riak atau garis
- Kualitas akhir yang cerah seperti cermin
- Sistem pelapis roller double lifting dengan kontrol mekanik dan pneumatik
- Rol pelapis poliuretan Jepang berkualitas tinggi
- Rol laser presisi untuk hasil pelapis yang unggul
- Penggerak motor decelerasi berongga independen untuk setiap roller
- Sistem perlindungan keselamatan yang komprehensif
| Spesifikasi | Rincian |
|---|---|
| Nama produk | Mesin Mengubah Warna |
| Model | Tipe OSM-GS-620 |
| Ukuran Mekanis | 2000mm (L) × 1500mm (W) × 1520mm (H) |
| Ukuran Kerja yang Efektif | Lebar: 620mm, Ketebalan: 2-80mm, Panjang minimum: 300mm |
| Bahan Bangunan | 1.5mm pelat bergelombang dingin cangkang, 100×50mm saluran rangka baja, 20cm A3 baja pelat dinding pendukung |
| Rol Lapisan | Diameter: 205mm, Panjang: 720mm, bahan poliuretan Jepang, kekerasannya dapat disesuaikan (30-50 derajat) |
| Roda Pengukuran | Diameter: 130mm, Panjang: 720mm, 45# pipa baja tanpa jahitan, runout < 0,05mm |
| Laser Roller | Diameter: 150mm, Panjang: 720mm, 45# struktur, runout <0.05mm, hard krom plating |
| Conveyor Roller | Diameter: 130mm, Panjang: 620mm, bahan karet Jepang |
| Scraper | Pemegang paduan aluminium dengan pisau baja tahan karat impor Swedia |
| Sistem kontrol | 4 set reduksi gir cacing berongga dan konverter frekuensi, penyesuaian rol independen |
| Kecepatan Pengangkutan | 5-20m/menit |
| Komponen Listrik | Relay OMRON, kontaktor CHNT, konverter frekuensi Taiwan Delta, penundaan CKC, saklar Izumi (sesuai CE) |
- Perlindungan pemutus sirkuit terhadap kebocoran
- Perlindungan overload motor
- Saklar pemberhentian darurat
- Perlindungan sekring sirkuit kontrol
- Kepatuhan terhadap standar keselamatan internasional
-
